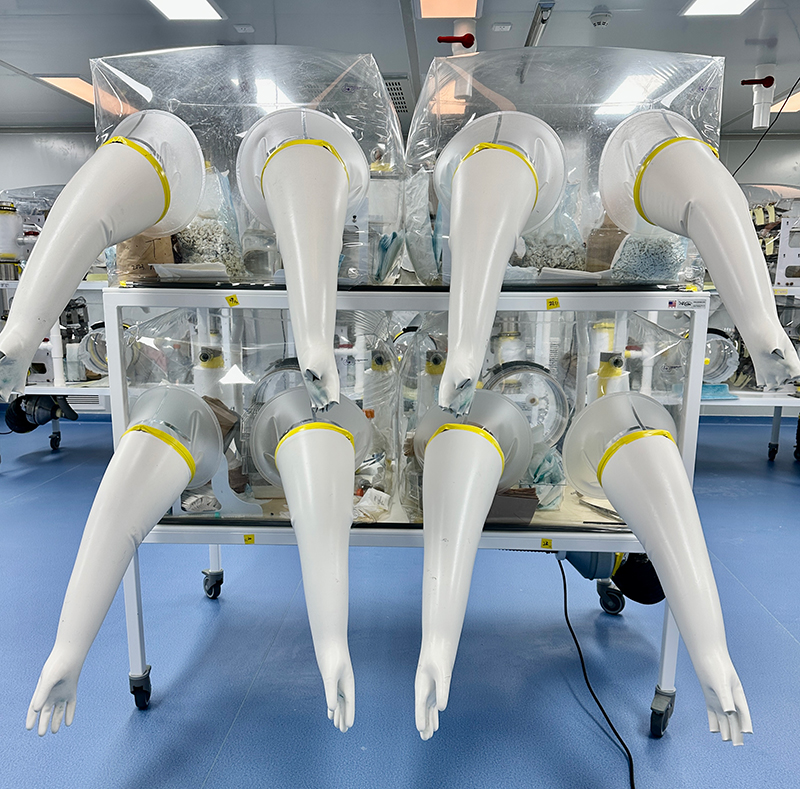

- Main uses:It contains four independent soft inclusion bodies, each of which is independently distinguished without interfering with each other. It is mainly used for simultaneous conduct of multiple groups of experiments and the feeding of a small number of sterile animals. It is also suitable for caesarean section purification of sterile mice, conservation of important strains, quarantine and isolation, etc.;
- Model size:Each soft bag of the JH-2020B model isolation bag measures 740*600*600mm-760*610*610mm, and is equipped with a 305*400mm diameter transfer window, which can accommodate 20 to 24 mouse cages.
- Main parameters:
power supply | 200-240V | power | 50/60Hz |
ventilation rate | ≥20 times (adjustable) | Relative pressure difference | ≥50pa (adjustable) |
Ammonia concentration | ≤14mg/m³ | Air velocity | ≤0.2m/s |
Number of colonies | No detection (after disinfection) | noise | ≤60dB |
Package body specifications | Bag body size | 740*600*600mm-760*610*610mm |
Bag rack size | 1620mm*810mm*1200mm-1720mm*910mm*1317mm (removable) |
Cage space/package (2 bags/rack) | 5-6 cages/pack [subject to actual cage box specifications] |
Transfer window size | 305*400mm |
