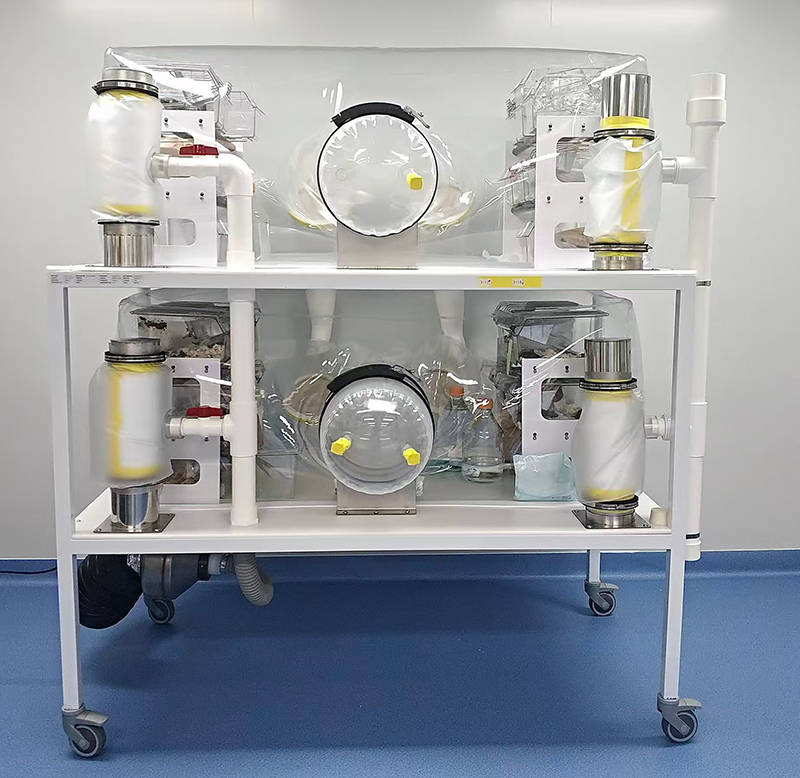

- Main uses:Containing two independent soft packages, upper and lower, it is mainly suitable for breeding and rearing of germ-free mice and experimental projects that require larger operating space. It is also suitable for caesarean section purification, important strain conservation, quarantine and isolation, etc.
- Model size:Each soft bag of the JH-2020A model isolation bag measures 1420*600*600mm-1520*620*620mm, and is equipped with a 305*400mm diameter transfer window, which can accommodate 36 mouse cages.
- Main parameters:
power supply | 200-240V | power | 50/60Hz |
ventilation rate | ≥20 times (adjustable) | Relative pressure difference | ≥50pa (adjustable) |
Ammonia concentration | ≤14mg/m³ | Air velocity | ≤0.2m/s |
Number of colonies | No detection (after disinfection) | noise | ≤60dB |
Package body specifications | Bag body size | 1420*600*600mm-1520*620*620mm |
Bag rack size | 1620mm*810mm*1200mm-1720mm*910mm*1317mm (removable) |
Cage space/package (2 bags/rack) | 16-18 cage/bag [Subject to actual cage box specifications] |
Transfer window size | 305*400mm |
